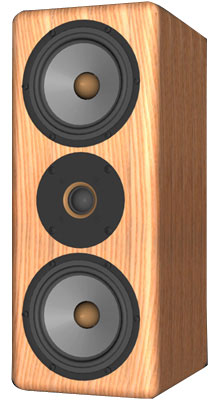

The FROY Mk3 is a new and improved version of the original FROY kit; utilizing the latest drive unit technologies from the Excel product line.This kit uses two W15CY001 woofers and a single T25CF002 "MILLENNIUM" tweeter mounted in a D'Appolito configuration.

The cabinet is a bass reflex design with the vent placed in the rear. This directs any potential vent noises away from the listener, and allows for minimum baffle area in the front. The port tube is constructed of two MDF boards which also serve as additional bracing for the cabinet.

The crossover network is conventional except for a parallel circuit which supresses the response peak due to the magnesium cone. The crossover frequency is 2.2kHz.

The FROY Mk3 was designed by Murray Zeligman, who also designed the original FROY kit.

He offers the following comments regarding the FROY MK3:

"This system has the ability to discern the subtlest of musical information, and at the same
time give an impression of bass that is far deeper and extended than one could even imagine"

Printable PDF files:

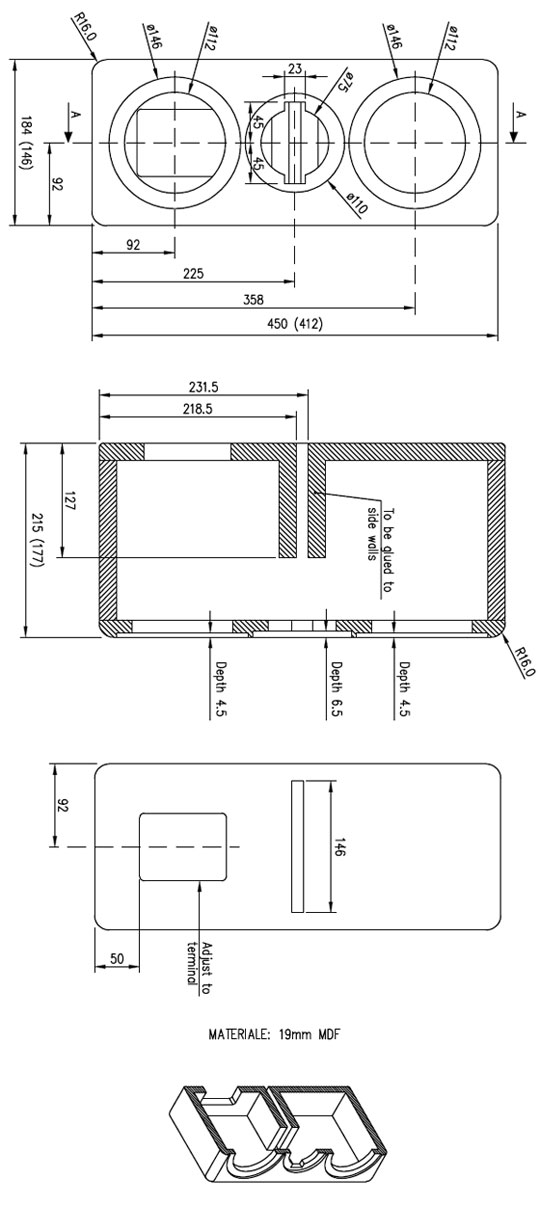

Cabinet drawings
Cabinet drawings in inches

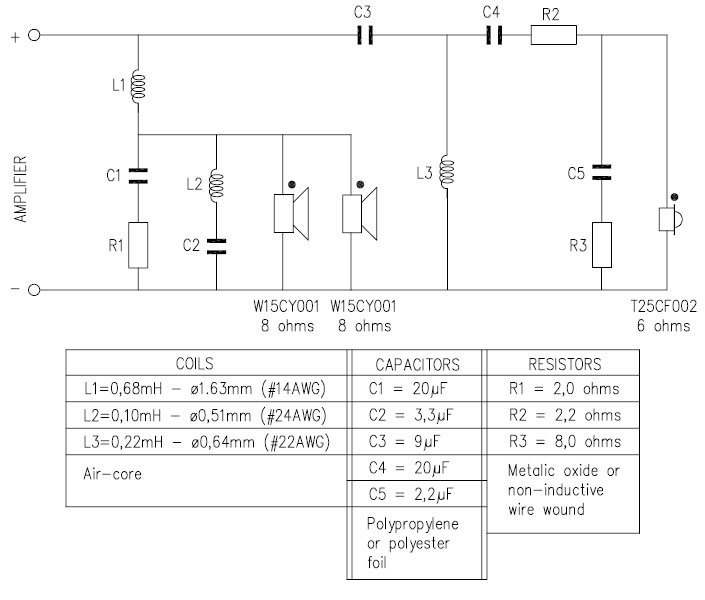

Crossover schematics

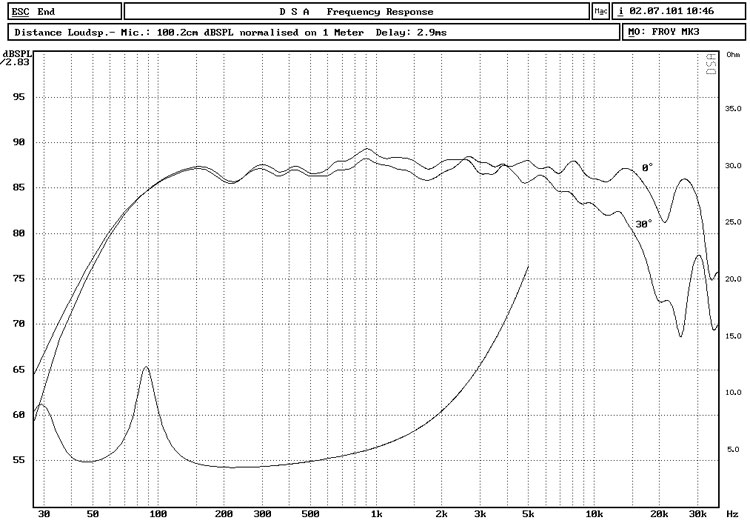

Measurements


*IEC 268-5 SEAS reserves the right to change technical data
